Switch LAB (VTP,HSRP)

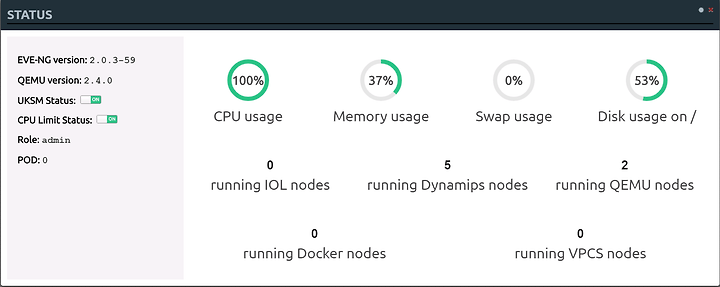

Network Simulation Program  : EVE-ng

Network Device Image : c3725-adventerprisek9_sna-mz.124-15.T7.image

Linux : Kali

Windows : Windows 7 sp1

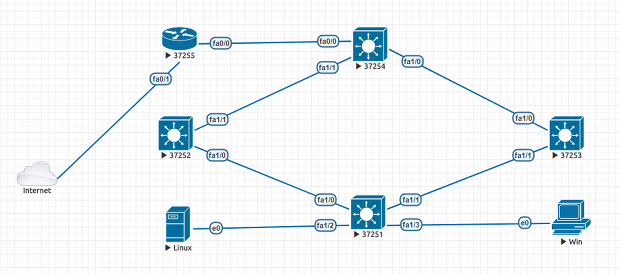

Topology

Configuration

37251
!! 37251 en conf t username root password toor service password-encryption no ip domain-lookup line console 0 logging synchronous exec-timeout 0 login local exit line vty 0 4 login local transport input ssh exit vlan 10  name HR  exit interface range fa1/0 - 3  switchport access vlan 10  exit hostname ASW
37252
!! 37252 en conf t username root password toor service password-encryption no ip domain-lookup line console 0 logging synchronous exec-timeout 0 login local exit line vty 0 4 login local transport input ssh exit vlan 10  name HR  exit interface range fa1/0  switchport access vlan 10  exit hostname DSW2 spanning-tree vlan 10 root primary interface vlan 10  ip address 10.1.1.2 255.255.255.0  standby 10 ip 10.1.1.1  standby 10 priority 110  standby 10 name KGHSRP  standby 10 preempt  no shutdown  exit interface fa1/1  no switchport  ip address 1.1.24.2 255.255.255.0  no shutdown ip dhcp excluded 10.1.1.1 10.1.1.10 ip dhcp pool KG  network 10.1.1.0 /24  default-router 10.1.1.1  lease 0 8  exit interface loopback 0  ip address 1.1.1.2 255.255.255.255  exit router ospf 1  router-id 1.1.1.2  network 1.1.24.2 0.0.0.0 area 0  network 10.1.1.2 0.0.0.0 area 0  passive-interface fa1/0  exit
37253
!! 37253 en conf t username root password toor service password-encryption no ip domain-lookup line console 0 logging synchronous exec-timeout 0 login local exit line vty 0 4 login local transport input ssh exit vlan 10  name HR  exit interface range fa1/1  switchport access vlan 10  exit hostname DSW3 spanning-tree vlan 10 root secondary interface vlan 10  ip address 10.1.1.3 255.255.255.0  standby 10 ip 10.1.1.1  standby 10 priority 100  standby 10 name KGHSRP  standby 10 preempt  no shutdown  exit interface fa1/0  no switchport  ip address 1.1.34.3 255.255.255.0  no shutdown interface loopback 0  ip address 1.1.1.3 255.255.255.255  exit router ospf 1  router-id 1.1.1.3  network 1.1.34.3 0.0.0.0 area 0  network 10.1.1.3 0.0.0.0 area 0  passive-interface fa1/1  exit
37254
!! 37254 en conf t username root password toor service password-encryption no ip domain-lookup line console 0 logging synchronous exec-timeout 0 login local exit line vty 0 4 login local transport input ssh exit hostname CoreSW interface fa0/0  ip address 1.1.45.4 255.255.255.0  no shutdown interface fa1/1  no switchport  ip address 1.1.24.4 255.255.255.0  no shutdown interface fa1/0  no switchport  ip address 1.1.34.4 255.255.255.0  no shutdown interface loopback 0  ip address 1.1.1.4 255.255.255.255  exit router ospf 1  router-id 1.1.1.4  network 1.1.24.4 0.0.0.0 area 0  network 1.1.34.4 0.0.0.0 area 0   network 1.1.45.4 0.0.0.0 area 0  exit
37255
!! 37255 en conf t username root password toor service password-encryption no ip domain-lookup line console 0 logging synchronous exec-timeout 0 login local exit line vty 0 4 login local transport input ssh exit hostname BBR interface fa0/0  ip address 1.1.45.5 255.255.255.0  no shutdown  exit interface fa 0/1  ip address dhcp  no shutdown  exit interface loopback 0  ip address 1.1.1.5 255.255.255.255  exit router ospf 1  router-id 1.1.1.5  network 1.1.45.5 0.0.0.0 area 0  passive-interface fa0/1  default-information originate  exit
